Description
Capsule Counting Line is suitable for counting, filling, capping & labeling of Capsule Bottles. The Filling Line consist different machines connected with each other to make online operations. All equipments complies as per GMP requirements and suitable with different capsule & bottle sizes. With this line one can fill 1 to 1000 capsules into bottles with moderate production speed. Capsule Counting & Bottle Packing Line having wide usage in R&D laboratories, Research Institutions, Herbal & Nutraceutical preparations, Unani & Ayurvedic medicines, Pilot batch productions etc.
Synonyms: Capsule Counting Packing Line, Capsule Bottle Packaging Line
Application: Counting capsules and filling into bottles/bags
Usage: Pharmaceutical, Nutritional, Biotech, Health Supplement, Food Product & Cosmetics
Suitability: Hard Gelatin, HPMC & Veg Capsules in 00, 0, 1, 2, 3, 4 & 5 sizes
Capsule Counting Line consist below machines:
Technical Specification

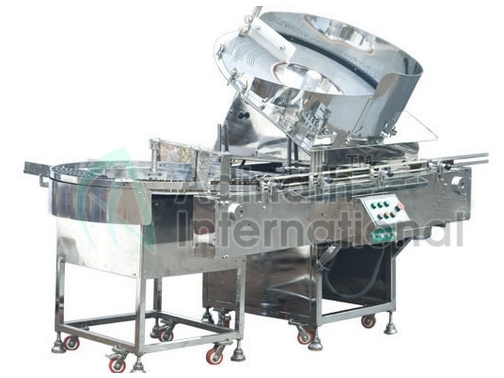

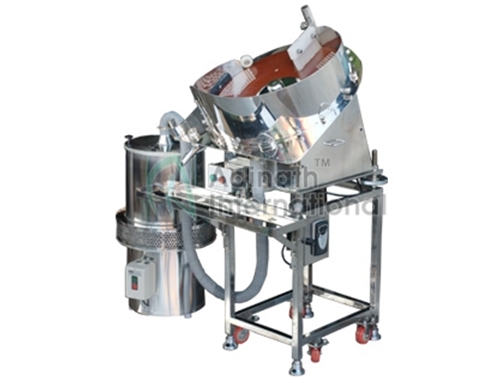

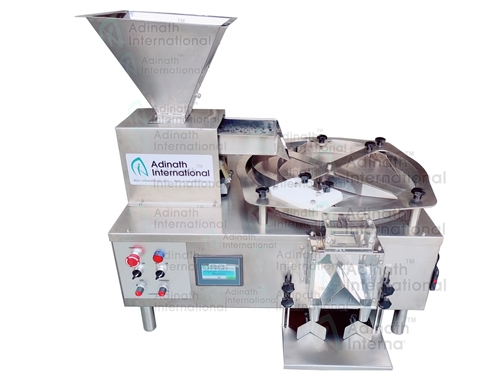

Capsule Counting Machine | |
---|---|
Capsule Sizes | 00, 0, 1, 2, 3, 4 & 5 sizes |
Feeding of Capsules | In Counting Disc |
Feeding of Bottles | Through Turn Table |
Power Consumption | 1 H.P. |
Overall Dimension | 2590mm (L) x 1550mm (W) x 1680mm (H) approx. |
Bottle Capping Machine | |
Power Supply | 1 H.P. |
Bottle diameter | Up to 90mm |
Cap size | As per sample |
Conveyor height | 750 mm to 840mm Adjustable |
Dimension | 1300mm (L) X 700mm (W) X 1700 (H) approx. |
Induction Sealing Machine | |
Conveyor Length | 1.5 meter |
Conveyor Width | 6” wide slat chain |
Power Voltage | 220 volts, Single Phase, 50 Hertz, 15 amp. |
Overall Dimension | 650mm (L) x 650mm (W) x 1650mm (H) approx. |
Bottle Labeling Machine | |
Container Diameter | 22mm to 105mm |
Label Height | 16 mm to 90 mm |
Label Length | 25 mm to Unlimited |
Label Roll Diameter | 300 mm Max. |
Gap between two labels | Min. 5 mm |
Label Core Diameter | 75 mm to 76 mm |
Overall Dimension | 1500mm (L) x 800mm (W) x 1400mm (H) approx. |
